BarChart

Draws a bar chart.

Inherits: LayoutControl

Properties

• animation(AnimationValue) –

  Controls chart implicit animation.

• baseline_y(Number | None) –

  Baseline value for Y axis.

• bgcolor(ColorValue | None) –

  Background color of the chart.

• border(Border | None) –

  The border around the chart.

• bottom_axis(ChartAxis | None) –

  The appearance of the bottom axis, its title and labels.

• group_alignment(MainAxisAlignment) –

  The alignment of the bar groups within this chart.

• group_spacing(Number) –

  An amount of space between bar groups.

• groups(list[BarChartGroup]) –

  The list of BarChartGroups to draw.

• horizontal_grid_lines(ChartGridLines | None) –

  Controls drawing of chart's horizontal lines.

• interactive(bool) –

  Enables automatic tooltips when hovering chart bars.

• left_axis(ChartAxis | None) –

  The appearance of the left axis, its title and labels.

• max_y(Number | None) –

  The maximum displayed value for Y axis.

• min_y(Number | None) –

  The minimum displayed value for Y axis.

• right_axis(ChartAxis | None) –

  The appearance of the right axis, its title and labels.

• tooltip(BarChartTooltip | None) –

  The tooltip configuration for this chart.

• top_axis(ChartAxis | None) –

  The appearance of the top axis, its title and labels.

• vertical_grid_lines(ChartGridLines | None) –

  Controls drawing of chart's vertical lines.

Events

• on_event(EventHandler[BarChartEvent] | None) –

  Called when an event occurs on this chart, such as a click or hover.

Examples

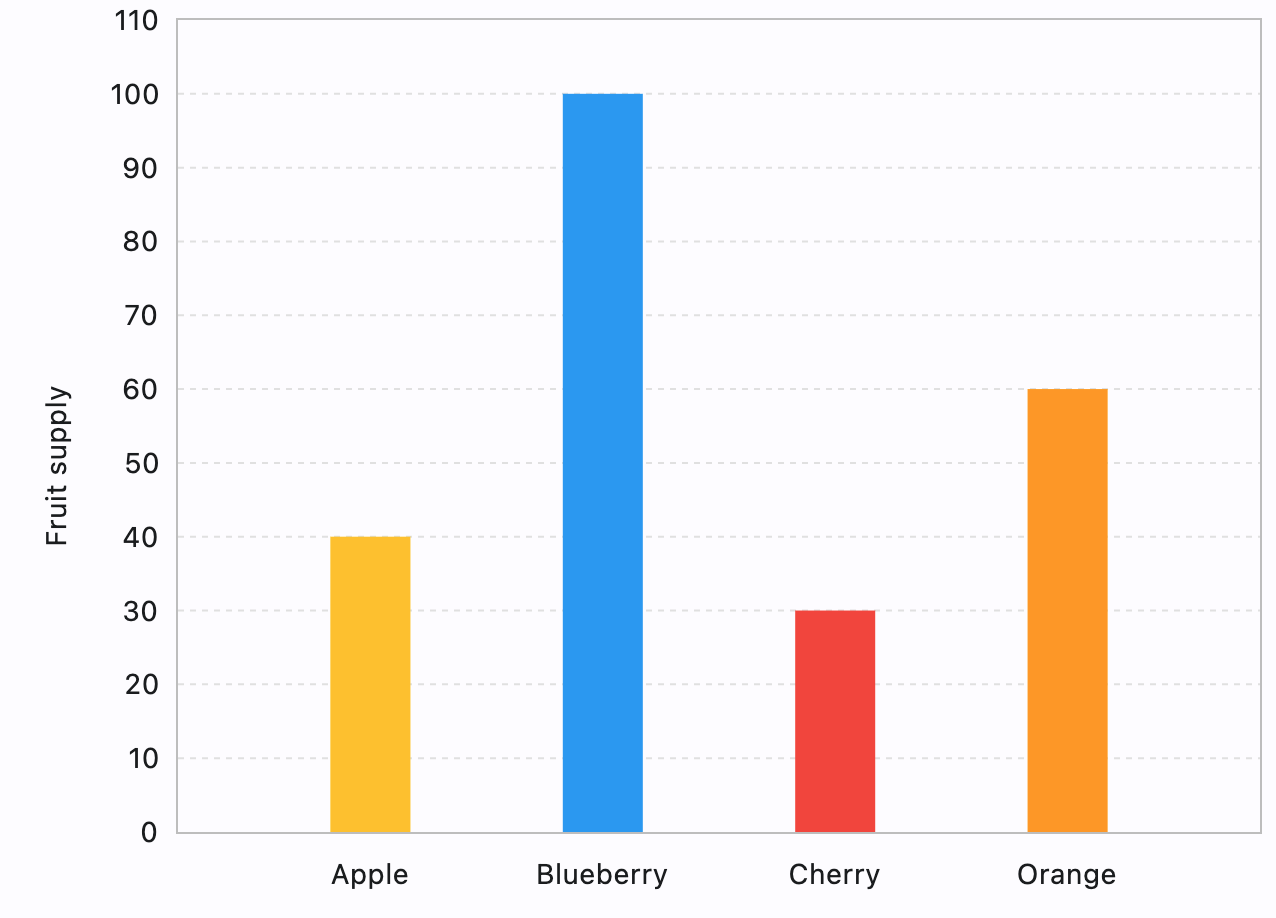

Example 1

import flet as ft
import flet_charts as fch


def main(page: ft.Page):
    page.add(
        fch.BarChart(
            expand=True,
            interactive=True,
            max_y=110,
            border=ft.Border.all(1, ft.Colors.GREY_400),
            horizontal_grid_lines=fch.ChartGridLines(
                color=ft.Colors.GREY_300, width=1, dash_pattern=[3, 3]
            ),
            tooltip=fch.BarChartTooltip(
                bgcolor=ft.Colors.with_opacity(0.5, ft.Colors.GREY_300),
                border_radius=ft.BorderRadius.all(20),
            ),
            left_axis=fch.ChartAxis(
                label_size=40, title=ft.Text("Fruit supply"), title_size=40
            ),
            right_axis=fch.ChartAxis(show_labels=False),
            bottom_axis=fch.ChartAxis(
                label_size=40,
                labels=[
                    fch.ChartAxisLabel(
                        value=0, label=ft.Container(ft.Text("Apple"), padding=10)
                    ),
                    fch.ChartAxisLabel(
                        value=1, label=ft.Container(ft.Text("Blueberry"), padding=10)
                    ),
                    fch.ChartAxisLabel(
                        value=2, label=ft.Container(ft.Text("Cherry"), padding=10)
                    ),
                    fch.ChartAxisLabel(
                        value=3, label=ft.Container(ft.Text("Orange"), padding=10)
                    ),
                ],
            ),
            groups=[
                fch.BarChartGroup(
                    x=0,
                    rods=[
                        fch.BarChartRod(
                            from_y=0,
                            to_y=40,
                            width=40,
                            color=ft.Colors.GREEN,
                            border_radius=0,
                        ),
                    ],
                ),
                fch.BarChartGroup(
                    x=1,
                    rods=[
                        fch.BarChartRod(
                            from_y=0,
                            to_y=100,
                            width=40,
                            color=ft.Colors.BLUE,
                            tooltip=fch.BarChartRodTooltip("Blueberry"),
                            border_radius=0,
                        ),
                    ],
                ),
                fch.BarChartGroup(
                    x=2,
                    rods=[
                        fch.BarChartRod(
                            from_y=0,
                            to_y=30,
                            width=40,
                            color=ft.Colors.RED,
                            border_radius=0,
                        ),
                    ],
                ),
                fch.BarChartGroup(
                    x=3,
                    rods=[
                        fch.BarChartRod(
                            from_y=0,
                            to_y=60,
                            width=40,
                            color=ft.Colors.ORANGE,
                            tooltip=fch.BarChartRodTooltip("Orange"),
                            border_radius=0,
                        ),
                    ],
                ),
            ],
        )
    )


ft.run(main)

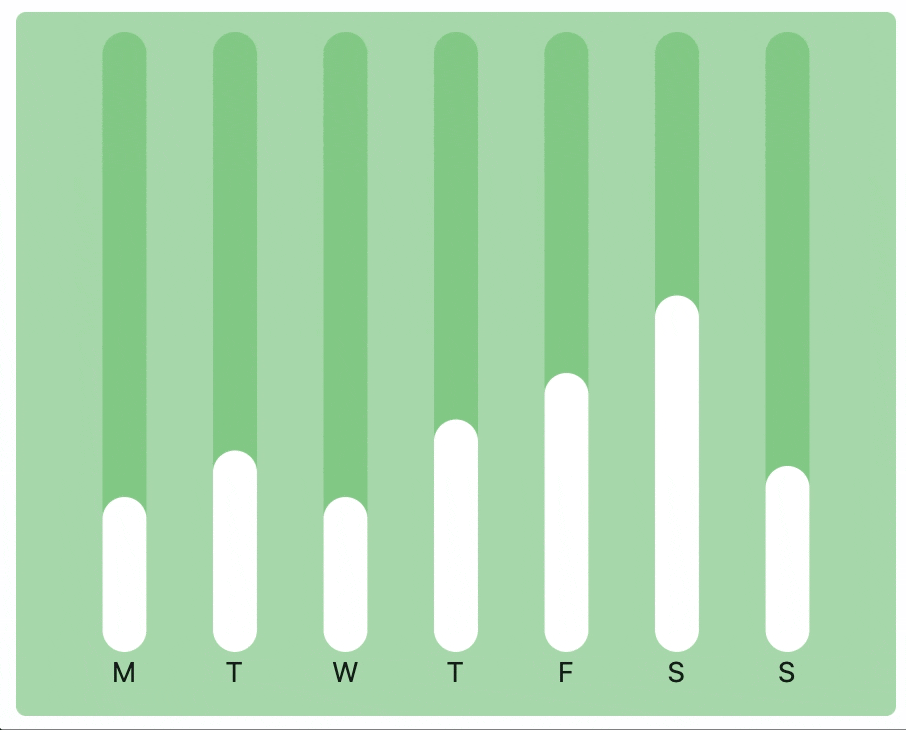

Example 2

import flet_charts as fch

import flet as ft


class CustomRod(fch.BarChartRod):
    def __init__(self, y: float, hovered: bool = False):
        super().__init__()
        self.hovered = hovered
        self.y = y
        self.width = 22
        self.color = ft.Colors.WHITE
        self.bg_to_y = 20
        self.bg_color = ft.Colors.GREEN_300

    def before_update(self):
        super().before_update()
        self.to_y = self.y + 0.5 if self.hovered else self.y
        self.color = ft.Colors.YELLOW if self.hovered else ft.Colors.WHITE
        self.border_side = (
            ft.BorderSide(width=1, color=ft.Colors.RED)
            if self.hovered
            else ft.BorderSide(width=1, color=ft.Colors.BLUE)
        )


def main(page: ft.Page):
    def on_chart_event(e: fch.BarChartEvent):
        if e.type == fch.ChartEventType.POINTER_HOVER:
            for group_index, group in enumerate(chart.groups):
                for rod_index, rod in enumerate(group.rods):
                    rod.hovered = (
                        e.group_index == group_index and e.rod_index == rod_index
                    )
            chart.update()

    chart = fch.BarChart(
        on_event=on_chart_event,
        interactive=True,
        groups=[
            fch.BarChartGroup(x=0, rods=[CustomRod(5)]),
            fch.BarChartGroup(x=1, rods=[CustomRod(6.5)]),
            fch.BarChartGroup(x=2, rods=[CustomRod(15)]),
            fch.BarChartGroup(x=3, rods=[CustomRod(7.5)]),
            fch.BarChartGroup(x=4, rods=[CustomRod(9)]),
            fch.BarChartGroup(x=5, rods=[CustomRod(11.5)]),
            fch.BarChartGroup(x=6, rods=[CustomRod(6)]),
        ],
        bottom_axis=fch.ChartAxis(
            labels=[
                fch.ChartAxisLabel(value=0, label=ft.Text("M", color=ft.Colors.BLUE)),
                fch.ChartAxisLabel(value=1, label=ft.Text("T", color=ft.Colors.YELLOW)),
                fch.ChartAxisLabel(value=2, label=ft.Text("W", color=ft.Colors.BLUE)),
                fch.ChartAxisLabel(value=3, label=ft.Text("T", color=ft.Colors.YELLOW)),
                fch.ChartAxisLabel(value=4, label=ft.Text("F", color=ft.Colors.BLUE)),
                fch.ChartAxisLabel(value=5, label=ft.Text("S", color=ft.Colors.YELLOW)),
                fch.ChartAxisLabel(value=6, label=ft.Text("S", color=ft.Colors.BLUE)),
            ],
        ),
    )

    page.add(
        ft.Container(
            content=chart,
            bgcolor=ft.Colors.GREEN_200,
            padding=10,
            border_radius=5,
            expand=True,
        )
    )


ft.run(main)

Properties

animation class-attribute instance-attribute

animation: AnimationValue = field(
    default_factory=lambda: Animation(
        duration=Duration(milliseconds=150), curve=LINEAR
    )
)

Controls chart implicit animation.

baseline_y class-attribute instance-attribute

baseline_y: Number | None = None

Baseline value for Y axis.

bgcolor class-attribute instance-attribute

bgcolor: ColorValue | None = None

Background color of the chart.

border class-attribute instance-attribute

border: Border | None = None

The border around the chart.

bottom_axis class-attribute instance-attribute

bottom_axis: ChartAxis | None = None

The appearance of the bottom axis, its title and labels.

group_alignment class-attribute instance-attribute

group_alignment: MainAxisAlignment = SPACE_EVENLY

The alignment of the bar groups within this chart.

If set to MainAxisAlignment.CENTER, the space between the groups can be specified using group_spacing.

group_spacing class-attribute instance-attribute

group_spacing: Number = 16.0

An amount of space between bar groups.

groups class-attribute instance-attribute

groups: list[BarChartGroup] = field(default_factory=list)

The list of BarChartGroups to draw.

horizontal_grid_lines class-attribute instance-attribute

horizontal_grid_lines: ChartGridLines | None = None

Controls drawing of chart's horizontal lines.

interactive class-attribute instance-attribute

interactive: bool = True

Enables automatic tooltips when hovering chart bars.

left_axis class-attribute instance-attribute

left_axis: ChartAxis | None = None

The appearance of the left axis, its title and labels.

max_y class-attribute instance-attribute

max_y: Number | None = None

The maximum displayed value for Y axis.

min_y class-attribute instance-attribute

min_y: Number | None = None

The minimum displayed value for Y axis.

right_axis class-attribute instance-attribute

right_axis: ChartAxis | None = None

The appearance of the right axis, its title and labels.

tooltip class-attribute instance-attribute

tooltip: BarChartTooltip | None = field(
    default_factory=lambda: BarChartTooltip()
)

The tooltip configuration for this chart.

If set to None, tooltips will not shown throughout this chart.

top_axis class-attribute instance-attribute

top_axis: ChartAxis | None = None

The appearance of the top axis, its title and labels.

vertical_grid_lines class-attribute instance-attribute

vertical_grid_lines: ChartGridLines | None = None

Controls drawing of chart's vertical lines.

Events

on_event class-attribute instance-attribute

on_event: EventHandler[BarChartEvent] | None = None

Called when an event occurs on this chart, such as a click or hover.
